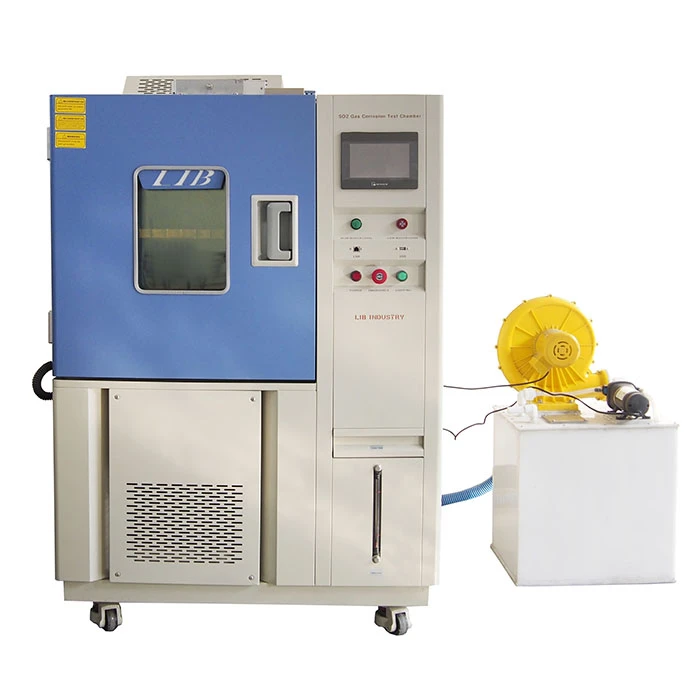

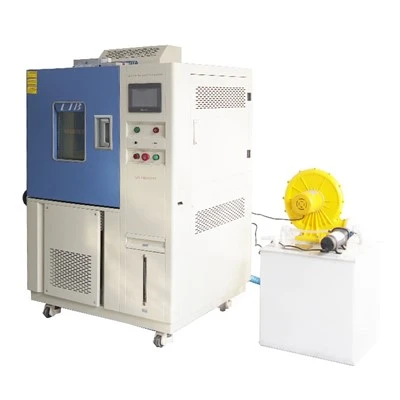

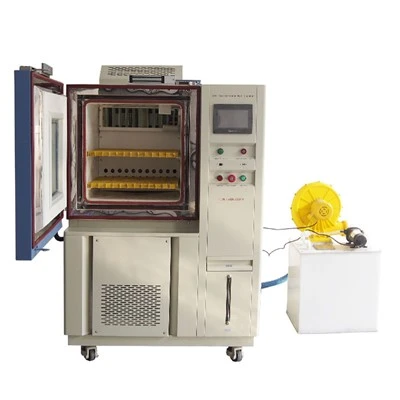

SO2 Corrosion Noxious Gas Test Chamber
Kub: 15 ° ~ 80 ° C;
Humidity: 30% ~ 98% RH;
SO2 Concentration: 25 ± 5 ppm;
Huab cua hloov pauv: 3 ~ 5 / h;
SO2 Concentration Sensor;
NAOH Exhaust Tank;
Kev cai thiab kev xaiv;
Kev ua tau zoo Aealing;
Electromagnetic Lock;
CE ROHS ntawv pov thawj
Hauj lwm lawm
LIBSO2 Corrosion Noxious Gas Test Chambertuaj yeem siv los ntsuas cov khoom tsis kam rau roj corrosion los ntawm simulating gas corrosion ib puag ncig. SO2 Corrosion Noxious Gas Test Chambers rov tsim kev puas tsuaj los ntawm qhov kub thiab txias, txheeb ze av noo thiab tsis muaj pa phem corrosion rau cov khoom, cov khoom siv thiab kev tsim kho. Cov chav kuaj no tso cai rau kev xaiv thiab rov tsim ua kom nrawm dua corrosion ua raws li cov kev cai ntawm cov qauv hauv tebchaws thiab thoob ntiaj teb xws li CE, ROHS, ISO, IEC60068-2-42, IEC60068-2-60, thiab lwm yam.
Cua txias system / Humidity system
● Mechanical compression tub yees system;
● Sab nraud cais, stainless hlau nto evaporation humidifier
Kub sensor / Humidity sensor / Gas sensor
● PTR Platinum Resistance PT100Ω/MV A-chav kawm, raug 0.001 degree ;
● Qhuav thiab ntub qhov muag teev;
● SO2 gas sensor
Cov khoom siv sab nrauv / Sab hauv cov khoom / Cov rwb thaiv tsev thermal
● Hlau Phaj nrog tiv thaiv txheej;
● SUS304 stainless hlau;
● Polyurethane ua npuas ncauj thiab rwb thaiv tsev paj rwb
Kev ruaj ntseg tiv thaiv ntaus ntawv
● Humidifier Qhuav-combustion tiv thaiv;
● Kev tiv thaiv kub dhau;
● Kev tiv thaiv dhau tam sim no;
● Refrigerant High-pressure tiv thaiv;
● Kev tiv thaiv dej tsis txaus;
Gas Exhaust Device
● NAOH kua tank
Tswj system
● Programmable xim LCD kov npo tswj; Ethernet kev twb kev txuas, PC Txuas
Cua sov Element
● Nichrome rhaub
Qhov rooj xauv
● Electromagnetic xauv
Sample Holder
● Static + dynamic ua ke tus qauv tuav
Fais fab mov
● 220V 50Hz / 380V 50Hz
Qauv | YOG-100 | YOG-225 | YOG-500 | YOG-800 | YOG-1000 |
Sab hauv Dimensions (mm) | 450*450*500 | 500*600*750 | 800*700*900 | 800*1000*1000 | 1000*1000*1000 |
Zuag qhia tag nrho Dimensions (mm) | 1050*880*1440 | 1050*1020*2000 | 1320*1320*2170 | 1470*1520*2315 | 1670*1520*2315 |
Sab hauv Volume (L) | 100 | 225 | 500 | 800 | 1000 |
Qhov kub thiab txias | 15 degree - 80 degree | ||||
Kub Fluctuation | ± 0.5 degree | ||||
Kub Deviation | ± 2 0 degree | ||||
Humidity Range | 30% ~ 98% RH | ||||
Humidity Deviation | ± 1% RH | ||||
SO2 Concentration | 25 ± 5 ppm | ||||
Huab cua hloov tus nqi | 3~5 /h | ||||
Build-in Dej Tank (mm) | 270*300*400 | 270*300*450 | |||
Saib Qhov Loj (mm) | 250*280 | 300*330 | 330*370 | ||
|
|
|  |
Huab cua ncig centrifuger cua | Saib Qhov rai | Tus tswj | Polyurethane ua npuas ncauj |
|
|  |  |
Electromagnetic xauv | Chav ua haujlwm | Electromagnetic Lock | Txias System |
