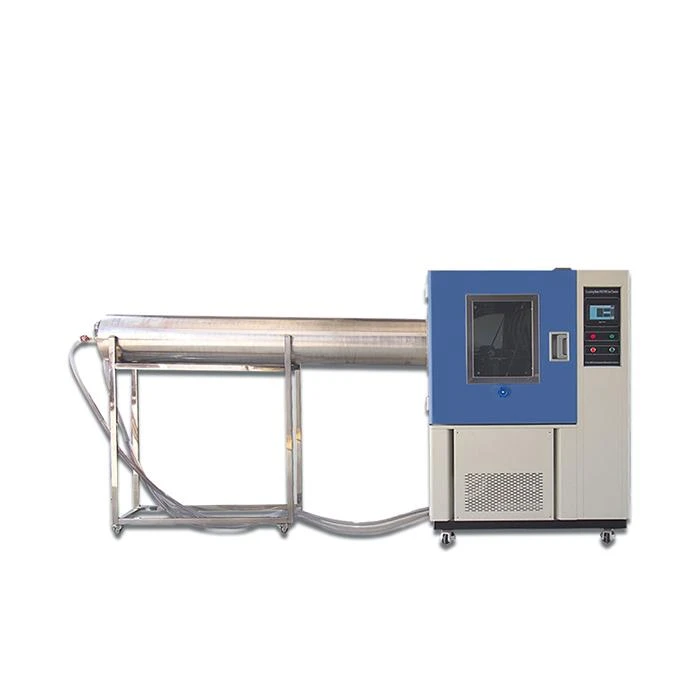

IPX5 IPX6 Rain Jet Test Chamber
IP Tus Nqi: IPX5 IPX6;
Dej ntws tus nqi: 12.5L / min ± 5%;
100L / min ± 5%;
Qauv: R56-800;
Dej Re-circulation System;
Txoj kab uas hla ntawm Turntable (mm): 600;
Turntable loads: 20kgs Max;
Turntable Rotation Ceev: 0~ 7r/min (Adjustable);
Internal Diameter IPX5 Nozzle: 6.3mm;
Internal Diameter IPX6 Nozzle: 12.5mm;
Hauj lwm lawm
LIB Environmental yog ib qho ntawm cov kws tshaj lij thiab cov tuam txhab tsim khoom lag luam kev nyab xeeb thiab ib puag ncig kuaj hauv Suav teb. Nruab nrog lub Hoobkas tshaj lij, peb tuaj yeem muab koj ipx5 ipx6 nag dav hlau kuaj chamber nrog tus nqi sib tw. Tam sim no peb muaj zoo ipx5 ipx6 nag dav hlau kuaj chamber kev muag khoom, txais tos mus yuav peb cov chav kuaj ntawm tus nqi qis thiab xyuas cov nqi nrog peb cov neeg muag khoom.
IPX5 IPX6 Rain Jet Test Chambersimulates ib puag ncig cov dej ntws los ntsuas cov dej tsis kam thiab sealability ntawm cov qauv thaum khaws cia, thauj, thiab siv. Muaj ntau yam khoom siv hluav taws xob thiab hluav taws xob, teeb, hluav taws xob txee, khoom siv hluav taws xob, tsheb, maus taus thiab - kom paub ntau ntxiv.
Tsis muaj
Qhov loj me (mm) | 800*800*800 |
Sab nraud dimension (mm) | 950*3150*1800 |
Sab hauv Volume (L) | 510 |
Txoj kab uas hla ntawm Turntable (mm) | 600 |
Turntable loads | 20 kgs Max |
| Turntable Rotation Ceev | 0~ 7r/min (Adjustable) |
Internal Diameter ntawm IPX5 Nozzle | 6.3mm ib |
Internal Diameter ntawm IPX6 Nozzle | 12.5mm 3 |
Rain Flow Rate IPX5 / IPX6 | 12.5L / min ± 5% / 100L / min ± 5% |
| Khoom siv sab nrauv | Hlau Phaj nrog tiv thaiv txheej |
Khoom siv sab hauv | SUS304 stainless hlau |
Qhov rai Observation | Ob chav txheej insulating iav nrog wiper |
Fais fab mov | 380V 50Hz |
Qhov siab tshaj plaws | 65dBA ua |
Environmental Conditional | 5 degree -+35 degree Tsawg dua lossis sib npaug li 85% RH |
Txuj | IEC 60529 ISO 20653 Kev Tswj Xyuas Kev Lag Luam |
Yam ntxwv
 |  |

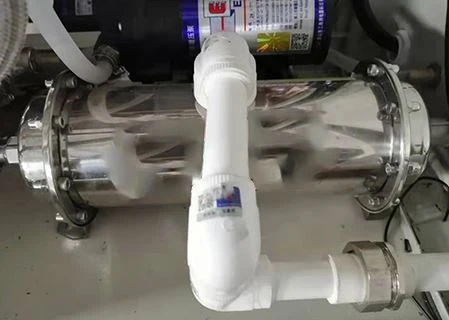

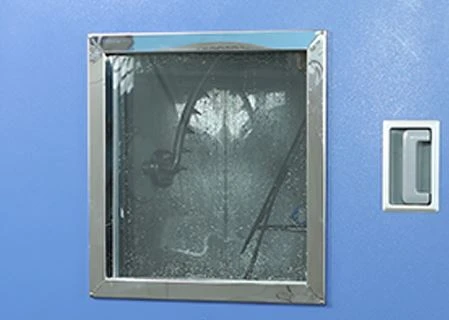

Cov dej rov ua dua Dej purifier: feem ntau purification los ntawm cov dej mus rau lub tank dej .. rain re-circulation system uas txo cov nag siv thiab cov kav dej ntau. | Qhov rai saib Ob-txheej tempered iav, tshwj xeeb tsim foob, nrog kev cuam tshuam zoo thiab tiv thaiv los nag. Nruab nrog phau ntawv los nag wiper rau kev soj ntsuam yooj yim. |
 |  |

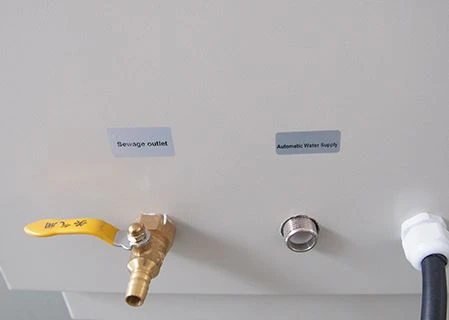

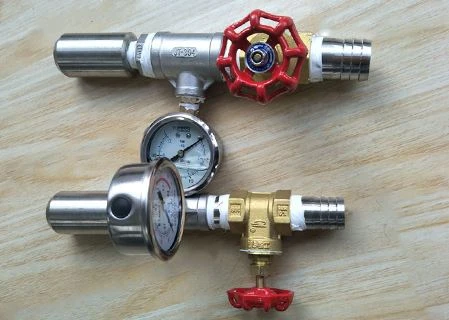

Txau Nozzle Ipx6 chav ntsuas dej tsis muaj dej muaj cov twj tso kua dej siab, ntsuas dej ntws, cov yeeb nkab dej, cov khoom siv shunt, cov khoom siv tshuaj tsuag thiab cov tshuaj tsuag nozzles. Los nag tsuag los ntawm lub nozzle, thiab tus nqi ntws yog tswj los ntawm electromagnetic flowmeter Nruab nrog IP5X thiab IP6X nozzles | Tsis Siv Neeg Dej Inlet Tsis siv neeg tswj cov dej kom tsawg ntawm cov khoom siv, cov neeg siv khoom tuaj yeem txuas ncaj qha mus rau chav kuaj faucet, thiaj li ua tiav qhov kev sim siab; Tsis siv neeg inlet txoj kab uas hla 1/2 nti (13.5MM); Lub tswb ntsuas dej siab thiab qis, dej tsis txaus teeb thiab suab. Txheem 2 meter ntws, ntev dua. |
Nta
Rain spray tswj thiab tso saib chav tsev;
Oscillating raj hom;
Dej ipx5 Jetting tshuab ua raws li IEC60529;
Kev tiv thaiv kev nyab xeeb;
Yooj yim ua haujlwm tus phooj ywg interface;
A3 steel phaj nrog galvanized txheej;
Kev kho electrostatic;
Kub thiab tsis kub corrosion kuj;
los nag kuaj cov khoom siv xim tuaj yeem kho.
