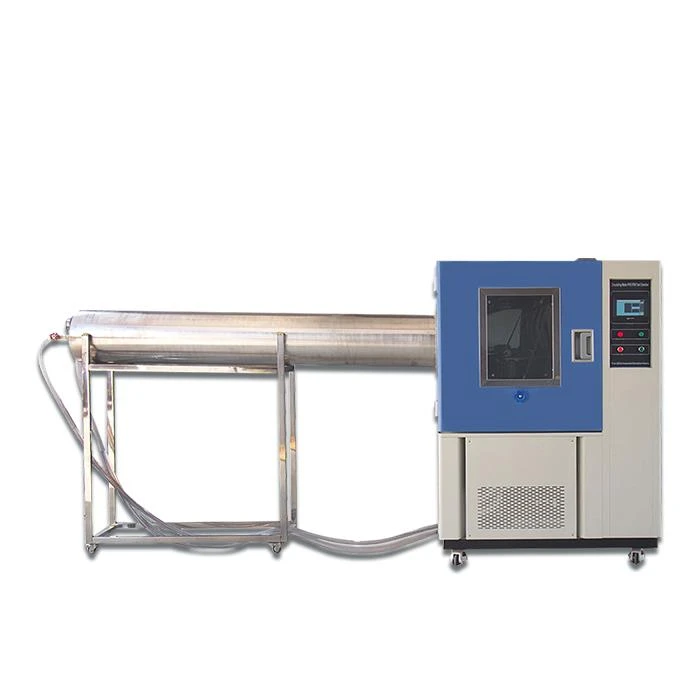

IPX5 IPX6 Dej Jetting Test Chamber
IP Tus Nqi: IPX5 IPX6;
Dej ntws tus nqi: 12.5L / min ± 5%; 100L / min ± 5%;
Dej Re-circulation System;
Txheem thiab customized;
Tsis siv neeg kuaj tag nrho;
Ua raws li IEC60529; ISO20653
Hauj lwm lawm
LIB Environmental yog ib qho ntawm cov kws tshaj lij thiab ntseeg tau cov tuam txhab kev nyab xeeb thiab ib puag ncig kuaj hauv Suav teb. Nruab nrog lub Hoobkas tshaj lij, peb tuaj yeem muab koj ipx5 ipx6 dej jetting test chamber nrog tus nqi sib tw. Tam sim no peb muaj cov khoom zoo ipx5 ipx6 dej jetting test chamber rau kev muag khoom, txais tos mus yuav peb cov chav kuaj ntawm tus nqi qis thiab xyuas tus nqi nrog peb tus neeg muag khoom.
IPX5 IPX6 Dej Jetting Test Chamberkuaj thiab ntsuas qhov kev tiv thaiv qib uas muab los ntawm cov khoom ntim khoom. Kev tiv thaiv qib tiv thaiv dej ingress yog hu ua IP code, ipx6 Jetting Test cov cuab yeej siv lub tshuab nqus dej twj tso kua mis (IPX5: Ф6.3mm, IPX6: Ф12.5mm) tiv thaiv qhov thaiv los ntawm txhua qhov kev taw qhia uas yuav tsum tsis muaj teeb meem, LIB INDUSTRY nruj me ntsis raws li IEC60529 txheem.
Basic Parameter
● Cov khoom siv sab nrauv: A3 steel daim hlau nrog cov yas pleev xim. ● Khoom siv sab hauv: Stainless Hlau Phaj SUS304 nrog daim iav nto ● IPX5 kuaj tshuab castors: Nrog PU npog tiv thaiv, Fixable thiab txav tau | ● Lub Qhov Rooj Saib Xyuas: Cov iav iav nrog cov yeeb yaj kiab ua kom sov rau defrost ● Qhov Rooj: Manually ua zawv zawg qhov rooj nrog xauv khawm ● Controller: Programmable Touch-screen maub los nrog cov ntaub ntawv kaw lus thiab rub tawm muaj nuj nqi ● Dej Cia: Lub tank dej rau cov dej storine rau recvcling |
Chav ua haujlwm Dimension (mm) | 800*800*800 D*W*H |
Sab nraud Dimension (mm) | 950*3150*1800 D*W*H |
Sab hauv Volume (L) | 510 |
Txoj kab uas hla ntawm Turntable (mm) | 600 |
Turntable Loads | 20 kgs Max |
Turntable Rotation Ceev | 0~ 7r/min (Adjustable) |
Internal Diameter ntawm IPX5 Nozzle | 6.3mm ib |
Internal Diameter ntawm IPX6 Nozzle | 12.5mm 3 |
Dej Flow Rate IPX5 / IPX6 | 12.5L / min ± 5% / 100L / min ± 5% |
Build-in Dej Tank (mm) | 370*375*950 |
Saib Qhov Loj (mm) | 475*475 |
Kev teeb tsa
|
|
|  |
Chav ua haujlwm | Saib Qhov rai | Lub zog sab hauv | Tsim-hauv Teeb pom kev zoo |
|
| ||
| Chav ua haujlwm | Txau Nozzle |
Kev simDaim ntawv thov
Kev ntsuas dej siv los ntsuas thiab txiav txim siab hluav taws xob, hluav taws xob, hluav taws xob, teeb pom kev zoo sab nraum zoov, cov khoom siv sib txuas lus, cov khoom siv teeb liab thiab lub tsheb teeb rau kev ntsuas dej tsis zoo thiab kev ntsuas IP ntsuas dej tsis zoo.
