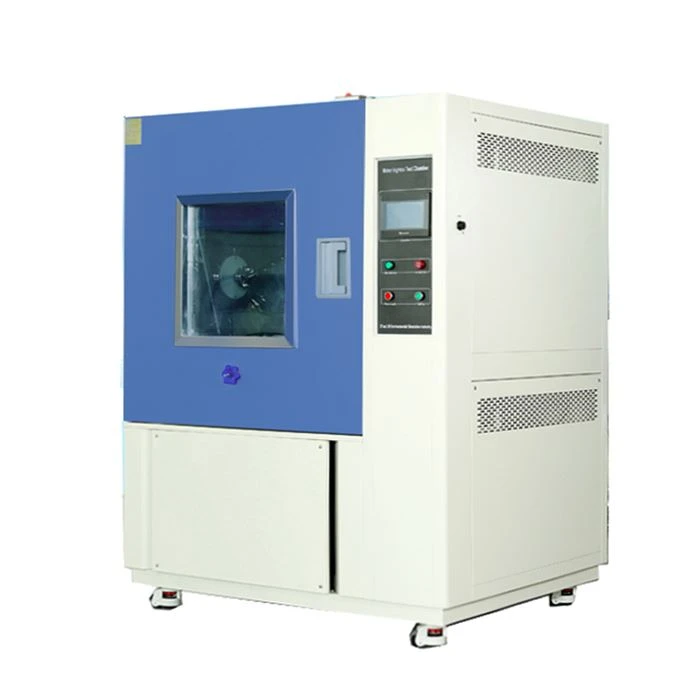

Dej dav hlau Chamber Ipx6
IP Tus Nqi: IPX5 IPX6;
Dej ntws tus nqi: 12.5L / min ± 5%;
100L / min ± 5%;
Qauv: R56-800;
Dej Re-circulation System;
Txoj kab uas hla ntawm Turntable (mm): 600;
Turntable loads: 20kgs Max;
Turntable Rotation Ceev: 0~ 7r/min (Adjustable);
Internal Diameter IPX5 Nozzle: 6.3mm;
Internal Diameter IPX6 Nozzle: 12.5mm;
Hauj lwm lawm
LIB Environmental yog ib qho ntawm cov kws tshaj lij thiab cov tuam txhab tsim khoom lag luam kev nyab xeeb thiab ib puag ncig kuaj hauv Suav teb. Nruab nrog lub Hoobkas tshaj lij, peb tuaj yeem muab koj lub dav hlau dej dav hlau ipx6 nrog tus nqi sib tw. Tam sim no peb muaj lub siab zoo dej dav hlau chamber ipx6 kev muag khoom, txais tos mus yuav peb cov chav kuaj ntawm tus nqi qis thiab xyuas cov nqi nrog peb cov neeg muag khoom.
Dej dav hlau chamber ipx 6yog siv los ua cov kev ntsuam xyuas rau kev ntsuam xyuas cov degree ntawm kev tiv thaiv muab los ntawm cov khoom ntim khoom. Cov qib kev tiv thaiv tiv thaiv dej ingress yog sawv cev los ntawm tus IP code. Tag nrho LIB xeem chav ua raws li IEC 60529 (IP Code tus qauv), ISO20653 thiab lwm yam qauv thoob ntiaj teb.
Peb cov chav dej ingress muaj peev xwm rau kev kuaj IP suav nrog:
IP X1 / X2 (drip test)
IP X3 / X4 (kev kuaj tshuaj tsuag)
IP X5 / X6 (dav hlau raj kuaj)
IPXX7 / X8 (kev ntsuas ntsuas)
IP X9K (siab dav hlau kuaj)
Main Technical Parameter
| Yam khoom | Dej dav hlau chamber ipx6 | |
| Qhov loj me (mm) | 800*800*800 D*W*H | 1000*1000*1000 D*W*H |
| Sab nraud dimension (mm) | 950*3150*1800 D*W*H | 1250*3350*1950 D*W*H |
| Txoj kab uas hla ntawm turntable (mm) | 400 | 600 |
| Lub tank loj | 450*250*450 D*W*H | |
| Nozzle Internal Diameter | 6.3mm (12.5mm rau IPX6 nozzle txoj kab uas hla) | |
| Tus nqi dej ntws | 12.5L / min ± 5% (100L / min ± 5% rau IPX6 dej ntws tus nqi) | |
| Txuj | IEC 60529: Cov | |
| Nominal zog | 3500W | |
| Fais fab mov | 380V 50Hz | |
| Kev sim | Cov tub ntxhais ntawm cov kwj deg loj ntawm 2.5 m nrug ntawm nozzle yog lub voj voog ntawm kwv yees li 40 hli (120mm). Kev ntsuas lub sij hawm ib square meter ntawm qhov chaw thaiv qhov chaw yuav tsum tau txau yog 1min. Lub sijhawm xeem tsawg kawg yog tsawg kawg yog 3 min. Qhov deb ntawm cov tshuaj tsuag nozzle mus rau qhov chaw kaw yog 2.5 ~ 3m. | |
Paub meej ntxiv
 |  |

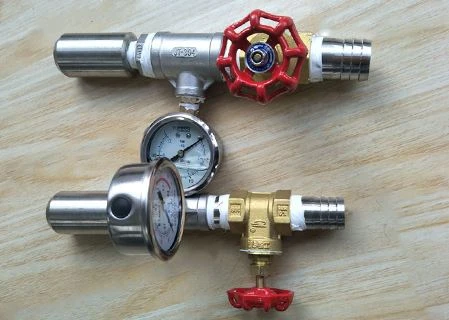

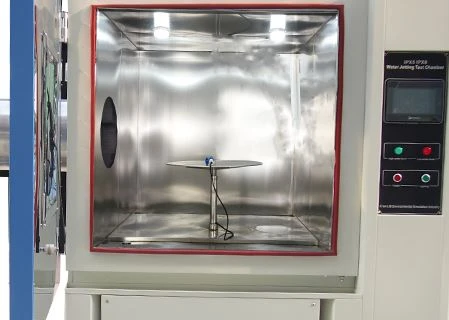

Chaw kuaj dej dav hlau cov cuab yeej kuaj xyuas cheeb tsam yog ua los ntawm stainless-steel. Enclosure yuav tsum tau kuaj yog muab tso rau ntawm turntable. | Nozzle 6.3mm rau IPX6 nozzle txoj kab uas hla 12.5mm rau IPX6 nozzle txoj kab uas hla |
 |  |

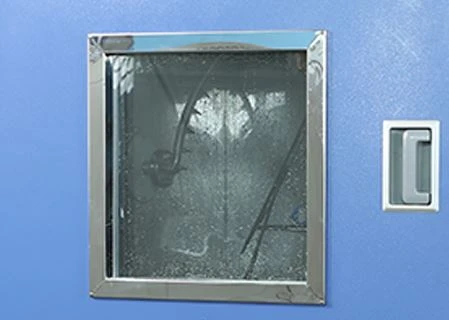

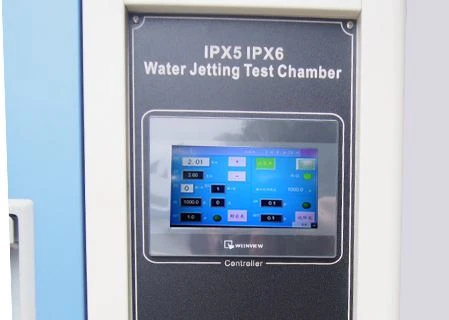

Tswj Vaj Huam Sib Luag Programmable xim zaub kov screen maub los Txoj Haujlwm: 99 pawg hauv 99 ntu, PC Txuas | Loj Saib Qhov rai waterproofing test khoom siv sab hauv teeb pom kev zoo Qhov rai coated nrog ua zaj duab xis los tiv thaiv nws los ntawm Frost. |
Ntsiab nta
Kev tiv thaiv los ntawm drips, txau thiab txaws dej
IPX5 IPX6 (IPX1, IPX2, IPX3 IPX4 IPX5 IPX6 ua ke) tuaj yeem ua tiav.
Oscillating raj thiab drip tais
Programmable xim zaub kov screen maub los
Ethernet thiab USB
Kev siv dej tsis siv neeg
Loj saib qhov rais nrog wiper
Test Chamber Internal illumination
ip5x waterproof chamber muab kev tiv thaiv kev nyab xeeb
Cov qauv
IEC 60529, Ua
TS EN ISO 20653
Pob ntawv
Export Txheem Ntoo Box
Yuav siv tau rau Hiav txwv, Cua, Railway, Tsheb thauj mus los
Pob loj: 3.4m³, tag nrho qhov hnyav: 410kgs
