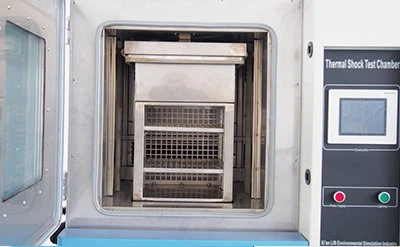

Thermal Shock Test Chambers
Lub npe: Thermal Shock Test Chambers
Qhov kub thiab txias: -20 degree -+150 degree ;
Qauv: TK-220;
Txias tus nqi: 10 degree / min (15 degree / min);
Cua sov tus nqi: 10 degree / min (15 degree / min);
Qhov kub thiab txias: ± 0.5 degree;
Qhov ntsuas kub sib txawv: ± 2.0 degree ;
Txuj thiab kev cai;
Hauj lwm lawm
Kev piav qhia
Thermal Shock Test Chambers muaj feem xyuam rau cov roj teeb lithium-ion thiab cov roj teeb pob. Cov roj teeb lithium yuav tsum tau ua kom muaj kev kub ntxhov thiab qis qis ua ntej kev thauj mus los,
Kev ntsuas cuam tshuam tuaj yeem ua kom muaj kev nyab xeeb ntawm lithium roj teeb.
Khoom Parameters
Lub npe | Thermal Shock Test Chambers |
Qauv | TS -500 |
Sab hauv qhov ntev ntawm chav kuaj | 650 * 650 * 500 hli |
Qhov ntim ntawm chav kuaj | 211L |
Load chav kuaj | 50kg ua |
Upper limit preheat kub | +220 degree |
Lub sijhawm cua sov | ambient kub rau ~ + 200 degree, nyob rau hauv 30 feeb. |
Txo qhov txwv ua ntej txias txias | -75 degree |
Lub sijhawm txias | ambient kub rau ~ -70 degree, nyob rau hauv 30 feeb |
Kub kub raug ntau | Ambient kub +20 txog +200 degree |
Tsawg kub raug ntau yam | -65 rau -5 degree |
Lub sijhawm rov qab los | Hauv 15 feeb |
Kub hloov pauv | Tsawg dua los yog sib npaug rau ±0.5 degree |
Kub deviation | Tsawg dua lossis sib npaug ± 3 degree |
Tus tswj | Programmable xim LCD kov npo maub los |
Txias qhov system | Mechanical compression tub yees system |
Cov khoom siv sab nrauv | Hlau Phaj nrog tiv thaiv txheej |
Qhov rai saib | Sab hauv teeb pom kev zoo, ob txheej txheej thermo stability silicone roj hmab sealing |
Fais fab mov | 380V 50Hz |
Cov khoom siv
|
|
Xeem Qhov | Test Basket |
|
|
Tus Tswj | Qhov rai saib |
Roj teeb thermal shock test
Qhov ntsuas kub siab thiab qis qis yuav tsum tau ua ntawm 72 ± 2 degree thiab -40 ± 2 degree . Lub sij hawm cia hauv qhov ntsuas kub yuav tsum siab dua lossis sib npaug li 6h,
Lub sijhawm hloov pauv kub thiab qis yuav tsum tsawg dua lossis sib npaug li 30min, qhov cuam tshuam yuav tsum yog 10 zaug, thiab lub sijhawm cia ntawm chav tsev kub (20 ± 5 degree) yuav tsum yog 24h. Tag nrho lub sijhawm xeem yuav tsum yog tsawg kawg ib lub lim tiam
Nta
1. Thermal shock chamber, .Kev ua haujlwm yooj yim thiab yooj yim thiab txhim khu kev qha khoom siv
2. Tus maub los qhia txog kev ua haujlwm tiav, kev ua tiav thiab kev teeb tsa kev nkhaus
3. Impact test chamber nruab nrog 50mm txoj kab uas hla xeem qhov, uas yuav siv tau rau sab nraud fais fab load thaiv qhov chaw kuaj
4. Nws muaj tag nrho tsis siv neeg, high-precision system voj
5. Kev tsim cov huab cua ncig ua rau sab hauv tsev kub tsis sib xws
Cim npe nrov: thermal shock test Chambers, manufacturers, lwm tus neeg, Hoobkas, nqi, nqe, siv, specification, kev muag khoom
