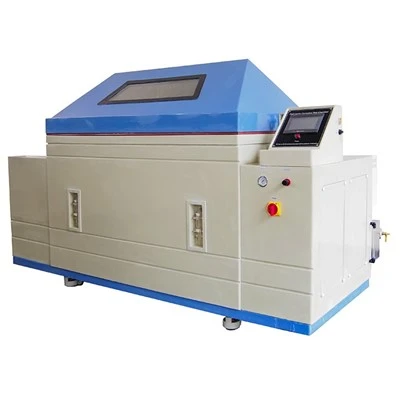

Cyclic Corrosion Test Chamber
Ntsev Fog Deposition: 1-2ml / 80cm2 · h
Txau hom: Nruam / Periodic
Ntsev Fog Sau: Fog collector thiab ntsuas huab cua lub tog raj kheej
Cua Preheating: Saturated cua chim (31 Liter)
Spraying System: Atomizer ntauwd thiab Spray nozzles
Controller: PID maub los
Kub Sensor: PT100Ω / MV A-chav kawm
Standard Configuration: 6 round tuav thiab 5 V-zoo li tus grooves
Fais fab mov: 220V 50Hz
Txuj: ASTMB117, ISO9227
Lub npe: Cyclic Corrosion Test Chamber
Hauj lwm lawm
Kev piav qhia
cyclic corrosion kuaj chamberyog ib qho ntawm cov khoom siv tseem ceeb tshaj plaws rau kev ua ib puag ncig kev hloov pauv thiab kev ntseeg siab ntawm cov txheej txheem tiv thaiv cov ntaub ntawv hlau, ntau yam thiab cov khoom siv, cov khoom siv hluav taws xob thiab cov khoom lag luam.
Technical Parameters
| Lub npe | Cyclic Corrosion Chamber | ||
|
Qauv |
SC -010 |
SC -016 |
SC -020 |
|
Internal qhov ntev (mm) |
800*1450*680 |
1000*1600*800 |
1000*2000*900 |
|
Zuag qhia tag nrho qhov ntev (mm) |
1400*2500*1720 |
1600*2650*1840 |
1600*3050*1940 |
|
Sab hauv Volume (L) |
780 |
1280 |
1800 |
|
Qhov kub thiab txias |
+10 degree - +90 degree |
||
|
Kub Fluctuation |
± 0.5 degree |
||
|
Kub Deviation |
± 2 0 degree |
||
|
Humidity Range |
30% ~ 98% RH |
||
|
Humidity Deviation |
+ 2%, - 3% |
||
|
Ntsev Fog Deposition |
1-2ml / 80cm2 · h |
||
|
Cua Preheating |
Saturated cua chim (31L) |
||
|
Txau System |
Atomizer ntauwd thiab Spray nozzles |
||
|
Ntsev Fog Sau |
Fog collector thiab ntsuas huab cylinder |
||
|
Kev sib khi |
Pneumatic foob |
||
|
Tus tswj |
Programmable xim LCD kov npo xws li, Ethernet txuas, PC Txuas, USB |
||
|
Saib Qhov Loj (mm) |
800*300 |
||
|
Khoom siv |
Cov iav fiber reinforced yas |
||
|
Standard Configuration |
8 round bar |
||
|
Txuj |
IEC 60068-2-52, IEC61701-2, ASTM G85, ISO 7253, ASTM B117, ISO9227 |
||
|
Environmental Conditional |
5 degree -+35 degree Tsawg dua lossis sib npaug li 85% RH |
||
Tsim
 |
 |
|
Kov npo Nws tau txais ib qho screen kov programmable maub los los tso saib cov ntaub ntawv xeem tiav. Nws tuaj yeem hloov tau ntawm Suav thiab Askiv. Kev txau, ziab thiab cua sov lub voj voog tuaj yeem tswj tau tag nrho. |
Xeem cheeb tsam Internal iav fiber reinforced yas khoom, muaj zog corrosion kuj, tsis yooj yim rau tawg, ntev kev pab cuam lub neej. Lub movable round bar thiab V-shaped zawj yog muab los pab txhawb qhov kev tso kawm ntawm cov duab sib txawv ntawm cov qauv kuaj. |
 |
 |
|
Nozzle rau cyclic corrosion test chamber Tom qab kev txhim kho kev txawj ntse, cov tshuaj tsuag ntauwd tuaj yeem kho cov tshuaj tsuag ntim, Lub quartz nozzle yog tiv taus kub, tsis yooj yim los thaiv, thiab yooj yim los ntxuav. |
Khoom siv Cov khoom siv tau txais cov qauv kev tiv thaiv corrosion, thiab kev ua haujlwm siab ua haujlwm ntau lub iav fiber ntau polyester Resin cov khoom thiab ntau yam khoom siv thiab cov chaw ua haujlwm kuj yog ua los ntawm cov ntaub ntawv kub-resistant thiab corrosion-resistant, thiab lawv muaj zog steel skeletons. |
Yam ntxwv
Salt cyclic corrosion chamber muaj peev xwm ntawm ntau lub voj voog tsis siv neeg suav nrog:
1. Ntsev Fog
2.Humidity Fogging
3. Lub voj voog qhuav
4.Dwell Cycle
5.Controlled Humidity
6.Txoj kev daws teeb meem
7.Nyob hauv qab txheeb ze humidity
8.Ib lub voj voog
9.Qhov muaj peev xwm mus ntawm -20C mus rau 90C.
Qauv
Fog corrosion chamber muaj 3 tus qauv qauv, Txhawb kev cai loj thiab xim
SC -010: 800L
SC -016: 1280L
SC -020: 1800L
>>>Yog xav paub ntxiv, tsim, kev thauj mus los, tom qab muag, nqe, thov nyem rau thov!
