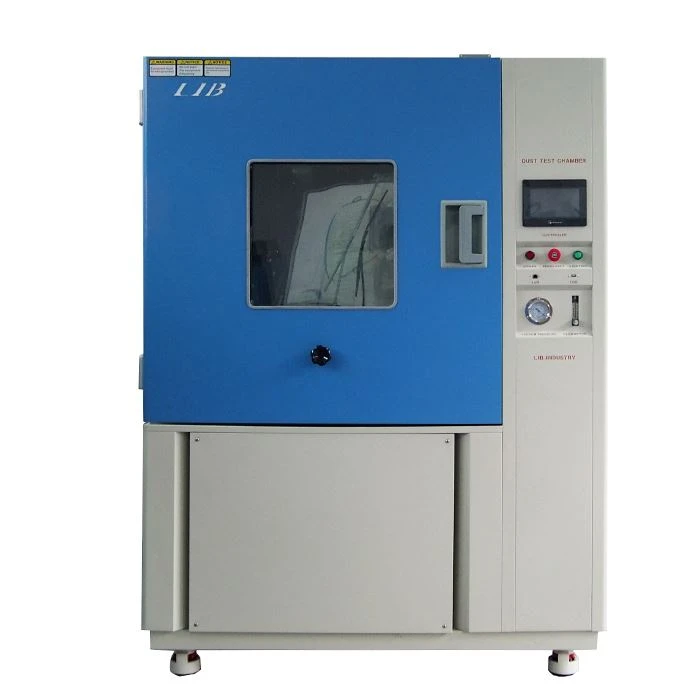

IP68 Dej Tester
Qauv: IP68 Dej Tester;
Txuj: IEC 60529, ISO20653;
Controller: Programmable maub los;
Qhov Rooj Xauv: Electromagnetic Lock;
Daim ntawv thov: hluav taws xob, txoj kev teeb;
Lub suab nrov tshaj plaws: 65 dBA;
Hauj lwm lawm
IP68 Dej Tester, Lub luag haujlwm tseem ceeb yog kuaj lub cev thiab lwm yam khoom siv hluav taws xob thiab khoom siv hluav taws xob, teeb, hluav taws xob, khoom siv hluav taws xob, tsheb, maus taus thiab lawv cov khoom thiab cov khoom nyob rau hauv simulated dej-immersed thiab plua plav huab cua.
Tom qab qhov kev xeem, qhov kev ua tau zoo ntawm cov khoom raug txiav txim kom ua tau raws li qhov yuav tsum tau ua los ntawm kev txheeb xyuas, thiaj li ua kom yooj yim rau kev tsim, kev txhim kho, kev txheeb xyuas thiab kev tshuaj xyuas lub Hoobkas ntawm cov khoom.
Parameter

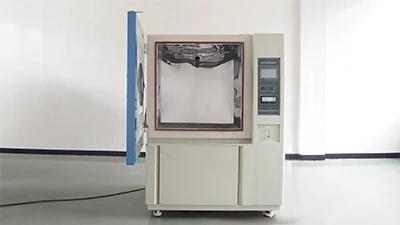

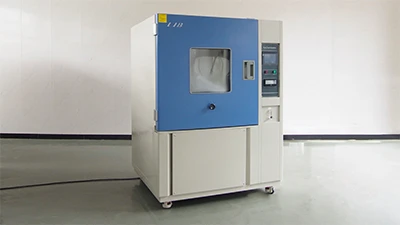

 | IP6X plua plav pov thawj feem ntau simulates cov plua plav ib puag ncig los ntawm talc, tiv thaiv plua plav nkag, talc tuaj yeem rov ua dua, |
Qauv | DI -800 |
Sab hauv Dimension (mm) | 800*1000*1000 |
Zuag qhia tag nrho Dimension (mm) | 1040*1450*1960 |
Sab hauv Volume (L) | 800 |
Qhov kub thiab txias | Ambient ~ +50 degree |
Humidity Range | < 30% RH |
Ib txwm Hlau Dia | 50 awm |
Nominal Dav ntawm qhov sib txawv ntawm cov xov hlau | 7 5 awm |
Specimen Power Outlet | Plua plav pov thawj socket 16A |
Lub tshuab nqus tsev | Nruab nrog lub ntsuas ntsuas siab, huab cua lim, siab regulator, txuas lub raj |
Standard Configuration | Qauv txee, plua plav wiper, talcum hmoov (5kgs) |

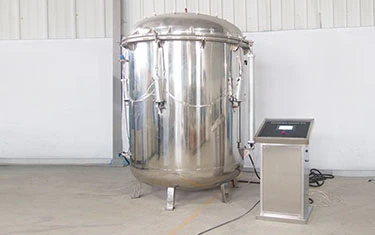

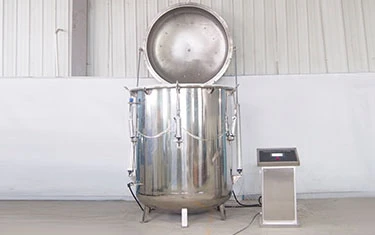

 | IPX8 dej immersion xyaum sim yog tsuas yog cov khoom nyob rau hauv ib tug tej yam lub siab nruam immersion xeem, |
Qauv | R78-1000 |
Muaj txiaj ntsig ntim | Txoj kab uas hla 1000mm, Qhov siab 1500mm. |
Khoom siv | Cov khoom yog steel phaj, phab ntsa thickness 2cm |
Dej tob | Dej qhov tob siab ntau yam 1 ~ 100m, kho tau |
Kev muab dej | Kev siv dej tsis siv neeg |
Tus tswj | Programmable xim kov npo hom maub los, tso saib qhov kub thiab txias, qhov ntsuas qhov ntsuas kub, dej tob, lub sijhawm khiav. |
Qhib / kaw | Qhib / kaw lub hau los ntawm pneumatic nqa, nrog kev ruaj ntseg xauv. |
Txuj | Ua raws li IEC60529 IPX7 IPX8 kev ntsuas dej |
Cim npe nrov: ip68 dej tester, manufacturers, lwm tus neeg, Hoobkas, nqi, nqe, siv, specification, kev muag khoom
