Qhov kub thiab av noo chamber ua haujlwm li cas?

Hauv - ntiaj teb ib puag ncig tiag, cov khoom lag luam tsis tshua muaj kev ruaj ntseg. temperature and humidity chamber Cov khoom siv hluav taws xob, cov khoom siv hauv tsheb, cov txheej txheem, thiab cov khoom siv kho mob yuav tsum tiv taus qhov kub thiab txias hloov sai, cov av noo siab, thiab ntev - ib puag ncig kev ntxhov siab. Yog tias tsis muaj kev sim ua kom ntseeg tau, qhov tsis zoo zais cia tsuas yog tshwm sim tom qab cov khoom mus txog kev ua lag luam- ua rau raug nqi tsis zoo thiab qeeb.

Nyob rau hauv rooj plaub tsis ntev los no (Lub Cuaj Hli 2025), ib tus neeg siv khoom Lavxias tau lees paub qhov ua tau zoo ntawm LIB chamber tom qab kev teeb tsa. LawvT-100B kub thiab humidity chamber, muab ua ke nrog cov khoom seem xws li T-100B contactor, tau ua tiav nrog cov tub yees thiab tshaj tawm tias "ua haujlwm zoo." Qhov kev tawm tswv yim tiag tiag no qhia txog qhov tseem ceeb tshaj plaws hauv kev ua haujlwm hauv chav kuaj txhua hnub-kev ua haujlwm ruaj khov, kev saib xyuas yooj yim, thiab cov txiaj ntsig zoo.

Tsab ntawv xov xwm no tau piav qhia txog yuav ua li cas lub ntsuas kub thiab cov av noo tsis tu ncua ua haujlwm, cov qauv thoob ntiaj teb nws txhawb nqa, thiab yuav ua li cas nws ua kom muaj tseeb thiab rov ua dua tshiab rau cov khoom siv hluav taws xob.Los ntawm kev tswj kom meej mus rau qhov tseeb - lub ntiaj teb validation, LIB Constant Temperature and Humidity Chambers yog tsim los ua kom muaj kev ntseeg tau zoo ntawm txhua theem ntawm koj txoj kev sim.

Txoj Cai Ua Haujlwm ntawm Kev Kub Ntxhov thiab Humidity Chamber

1. Kev tswj qhov kub thiab txias tau ua tiav los ntawm kev kaw - lub voj cua sov thiab cua txias.
Hluav taws xob cua sov thiab tub yees compressors ua hauj lwm ua ke nyob rau hauv PID tswj kom muaj ib tug ruaj khov ntau yam ntawm -40℃mus rau +150 degree, nrog stability mus txog ± 0.5 degree.

2. Cov av noo yog tswj los ntawm kev sib koom ua ke humidification thiab dehumidification txheej txheem.
Chav generators ntxiv cov dej noo thaum txias coils condense ntau vapor, tswj 20% -98% RH nrog ± 2.5% raug.

3. Huab cua ncig ua kom zoo ib puag ncig ib puag ncig thoob plaws hauv lub chamber.
Cov kiv cua centrifugal thiab airflow ducts faib huab cua sib npaug, txwv qhov kub thiab txias hloov mus rau ± 1.5℃thoob plaws qhov chaw ua haujlwm. Lub perforated txee tsim tso cai rau huab cua mus dhau vertically thiab horizontally los ntawm cov qauv, txo cov airflow blockage thiab limiting kub variation rau ± 1.5℃nyob rau hauv lub chaw ua hauj lwm.

4. Sensors thiab controllers muab lub sijhawm tiag tiag - tawm tswv yim thiab kev hloov kho kom raug.
PT100 Class A sensors tsis tu ncua saib xyuas cov xwm txheej, thaum tus maub los kho cov zis tawm tam sim kom tshem tawm qhov sib txawv.

Temperature Humidity Chambers rau kev kuaj kev laus

1. Kub Thiab Humidity Aging Chamber Rau Composites

2. Me Me Lub Taub Hau Kub Kub Humidity Chamber

3. Siab -Kev Taug Kev Hauv Qhov Kub Kub Kub

4. Temperature Explosion Proof Test Chamber

5. Zog-Cov roj teeb muaj txiaj ntsig Thermal Test Chamber

6. Programmable 2-Zone Thiab 3-Zone Vertical Shock Test Chamber

Standard Tests txhawb los ntawm LIB Chambers

LIB Chambers yog tsim los ua raws li cov qauv thoob ntiaj teb lees paub, ua kom koj cov txiaj ntsig tau txais thoob ntiaj teb:

IEC Cov Qauv (International Electrotechnical Commission)

Siv dav hauv cov khoom siv hluav taws xob, hluav taws xob, thiab cov khoom siv:

1. IEC 60068-2-1 (Kev ntsuas kub qis)
Tawm mus rau -40℃, -55℃, lossis qis dua rau 2 txog 72 teev los ntsuas qhov ua haujlwm txias thiab pib- nce kev ua haujlwm.

2.IEC 60068-2-2 (High Temperature Test)
+85℃rau +150℃raug rau rwb thaiv tsev stability, khoom deformation, thiab thermal aging tsom xam.

3. IEC 60068-2-14 (Kev Hloov Kub Kub / Thermal Cycling)
Kev nrawm nrawm ntawm -40℃thiab +85℃lossis +125 degree, feem ntau ntawm 3-10℃/ min, simulating thermal expansion thiab contraction stress.

4. IEC 60068-2-30 (Cyclic Damp Heat Test)
Hloov cov av noo (piv txwv li, 25℃↔ 55℃, 95% RH) kom simulate hnub- hmo ntuj variation.

5. IEC 60068-2-78 (Kev Ntsuas Dej Tsis Txaus Siab)
40℃/ 93% RH rau 96, 240, 500, los yog mus txog 1000 teev rau corrosion kuj thiab rwb thaiv tsev kev ntseeg tau.

ISO Standards (International Organization for Standardization)

Feem ntau hauv automotive, industrial, thiab mechanical applications:

1. ISO 16750-4 (Txoj Kev Tsheb - Cov xwm txheej ib puag ncig)
Npog qhov kub ntawm kev caij tsheb kauj vab (–40℃rau +85 degree), cov av noo mus txog 95% RH, thiab ua ke ib puag ncig kev ntxhov siab rau tsheb hluav taws xob.

2. ISO 20653 (IP Code rau Txoj Kev Tsheb) (ua ke nrog kev ntsuas av noo)
Ntsuam xyuas kev tiv thaiv thaiv hauv qhov kub thiab txias.

3. ISO 4892-2 (Tswj Huab Cua) (nrog humidity cycles)
Ua ke kub, av noo, thiab UV raug rau cov khoom siv durability kuaj.

MIL Standards (Military & Aerospace Applications)

Tsim los rau ib puag ncig huab cua thiab siab -kev ntseeg siab:

1. MIL-STD-810H Txoj Kev 501 / 502 (High / Low Temperature)
Kev ntsuas kev ua tau zoo nyob rau hauv huab cua kub (+70℃+) thiab txias (–40℃lossis qis dua).

2. MIL-STD-810H Txoj Kev 503 (Tsuas Kub Shock)
Kev hloov ceev ceev ntawm huab cua txias kom simulate ib puag ncig kev hloov pauv sai.

3. MIL-STD-810H Txoj Kev 507 (Humidity Test)
Cyclic humidity raug los ntawm 30% mus rau 95% RH nrog kub variation rau simulate tropical climates.

JEDEC Cov Qauv (Semiconductor & Electronics Reliability)

Qhov tseem ceeb rau chips, PCBs, thiab hluav taws xob sib dhos:

1. JESD22-A101 (Steady-State Temperature Humidity Bias Test)
85℃/ 85% RH rau 1000 teev nyob rau hauv hluav taws xob bias kom paub txog corrosion thiab to.

2. JESD22-A104 (Tsub Cycling Test)
-40℃↔ +125℃cycling rau kev sib koom ua ke thiab kev ntseeg ntawm pob.

Standard Tests txhawb los ntawm LIB Chambers

Qeb	Txheem / Test	Kev Xeem	Lub hom phiaj
IEC	IEC 60068-2-1: Kev Ua Haujlwm Zoo	-40℃rau -55 degree, 2-72 teev	Tsawg kub tsis kam
	IEC 60068-2-2: Kev Ua Haujlwm Zoo	+85℃rau +150 degree	Kub kub aging & stability
	IEC 60068-2-14: Cov	-40℃↔ +85/+125 degree, 3-10℃/ min	Thermal cycling kev nyuaj siab
	IEC 60068-2-30: Kev Ua Haujlwm Zoo	25℃↔ 55 degree, mus txog 95% RH	Cyclic humidity raug
	IEC 60068-2-78: Cov	40℃/ 93% RH, 96-1000 h	Kev ntsuas kub tsis tu ncua
ISO	ISO 16750-4	-40℃↔ +85℃, Tsawg dua lossis sib npaug li 95% RH	Automotive electronics kuaj
	TS EN ISO 20653	Temp + humidity + IP	Enclosure tiv thaiv validation
	TS EN ISO 4892-2	Temp + humidity + UV	Material weathering durability
MIL	MIL-STD-810H 501/502	High / low temp extremes	Environmental endurance
	MIL-STD-810H 503	Kev hloov ceev ceev	Thermal shock simulation
	MIL-STD-810H 507	30-95% RH cycles	Tropical humidity simulation
JEDEC	JESD22-A101	85℃/ 85% RH, 1000 h	Moisture Resistance (Kev kuaj tsis zoo)
	JESD22-A104	-40℃↔ +125 degree	Solder & pob kev ntseeg tau

Cov xwm txheej sib tw hauv kev siv tiag tiag

Cov no yog cov kev ntsuas ntsuas ntsuas thoob plaws hauv kev lag luam:

1. 85/85 Damp Heat Test
85℃/ 85% RH rau 500-1000 teev
→ Txuj rau PCB, semiconductor, thiab cov neeg siv khoom siv hluav taws xob ntseeg tau

2. Kev Ntsuas Kub Cycling
-40℃↔ +85℃lossis +125 degree
Ramp tus nqi: 3℃/ min rau 10℃/ min
→ Ntsuas thermal qaug zog thiab cov khoom nthuav dav

3. Kev Cia Siab Kub (HTS)
+125℃rau 240–1000 teev
→ Kev ntsuam xyuas ntev -cov ntaub ntawv ruaj khov thiab kev laus

4. Tsawg Kub Cia (LTS)
-40℃rau 24-72 teev
→ Tshawb xyuas qhov pib txias thiab kev ua haujlwm zoo

5. Steady-State Condition
25℃/ 60% RH rau kev ntsuas kev ruaj ntseg

Vim li cas LIB Chambers xa cov txiaj ntsig ntseeg tau

1. Kub stability:± 0.5 degree

2. Humidity raug:± 2.5% RH

3. Uniformity:± 1.5 degreehla lub chamber

4. Nruam cov ntaub ntawv kaw lus:mus txog 3 xyoos

5. Programmable profiles:120 cov kev pab cuam × 100 kauj ruam

Cov peev txheej no ua kom txhua qhov kev sim ua tau raws li tus qauv yuav tsum tau ua - muabrov ua tau, traceable, thiab ntawv pov thawj -cov ntaub ntawv npajrau kev lag luam thoob ntiaj teb.

nthuav qhia expressYog xav paub ntxiv txog cov ntaub ntawv thiab cov ntsiab lus hais txog peb qhov Constantkub thiab humidity chamber, thov koj xav email rau peb ntawminfo@libtestchamber.com.

Yuav Ua Li Cas Ntsuas Cov Khoom Siv Hluav Taws Xob nrog LIB Constantkub thiab av nooChamber

Cov khoom siv hluav taws xob yuav tsum ua raws li cov qauv nruj ib puag ncig xws li IEC 60068-2-78 thiab IEC 60068-2-14. Hauv qab no yog ib yam85℃/ 85% RH damp kub kuaj, dav siv rau PCB, sensors, thiab semiconductor validation:

	Lub npe	Kub Humidity Chamber rau Composites
	Qauv	TSI-100
	Internal qhov ntev (mm)	400500500
	Zuag qhia tag nrho (mm)	86010501620
	Muaj peev xwm	100L
	Qhov kub thiab txias	-20℃-+150 degree
	Hom qis	A: -40℃B: -70℃C -86 degree
	Humidity Range	20% -98% RH
	Kub deviation	± 2.0 degree
	Cua sov tus nqi	3℃/ min
	Txias tus nqi	1℃/ min
	Tus tswj	Programmable xim LCD kov npo maub los, Multi-language interface, Ethernet, USB
	Cov tub yees	R404A, R23
	Cov khoom siv sab nrauv	Hlau Phaj nrog tiv thaiv txheej
	Khoom siv sab hauv	SUS304 stainless hlau
	Txheem configuration	1 Cable qhov (Φ 50) nrog ntsaws; 2 txee
	Lub Sijhawm Ua Haujlwm	0.1 ~ 999.9 (S, M, H) teeb tsa


Robust Workroom	Cable Qhov		Kub thiab Humidity Sensor	PID tswj

1. Preconditioning cov qauv ntawm ambient tej yam kev mob
Muab cov qauv tso rau hauv lub chamber ntawm ambient tej yam kev mob (25℃/ 50% RH) rau stabilization.
→ LIB Advantage:PID preconditioning tiv thaiv tam sim ntawd thermal shock, tiv thaiv cov khoom rhiab heev.

2. Ramp-Tshaj theem
Ua kom kub txog 85℃ntawm 3℃/ min thaum nce av noo mus rau 85% RH.
→ LIB Advantage:Precise ramp tswj xyuas kom tsis tu ncua kev ntxhov siab yam tsis muaj overshoot, txhim kho kev xeem raug.

3. Nthuav Tawm (soak Phase)
Khaws 85℃/ 85% RH rau 500-1000 xuab moos nyob ntawm qhov xav tau.
→ LIB Advantage:Ntev -lub sij hawm ruaj khov (± 0.5℃/ ± 2.5% RH) ua kom tsis txhob muaj kev sib tw thaum lub sij hawm txuas ntxiv.

4. Kev soj ntsuam thiab cov ntaub ntawv kaw lus
Sau qhov kub thiab av noo txhua feeb, tsim kom muaj - lub sijhawm nkhaus.
→ LIB Advantage:Ua tau - nyob rau hauv nkhaus zaub thiab mus txog 3-xyoo cov ntaub ntawv khaws cia kom tag nrho traceability.

5. Txias thiab rov qab
Maj mam rov qab mus rau ambient tej yam kev mob kom tsis txhob condensation puas.
→ LIB Advantage:Kev tswj kom txias (1℃/ min) tiv thaiv kev poob siab ntawm cov hluav taws xob hluav taws xob.

6. Tom qab-Test Evaluation
Tshawb xyuas corrosion, rwb thaiv tsev degradation, lossis ua haujlwm tsis ua haujlwm.
→ LIB Advantage:Uniform airflow ua kom txhua tus qauv muaj kev ntxhov siab zoo ib yam, txhim kho qhov sib xws.

nthuav qhia expressTxhawm rau kom tau txais cov kev daws teeb meem zoo tshaj plaws los yog kho thiab tus nqi rau Cov Cuab Yeej Cuab Yeej Tsis Txaus Siab thiab Humidity Chamber, thov hu rau peb ntawminfo@libtestchamber.com.

FAQs ntawm LIB qhov kub thiab txias Chamber



Lub npe	Me Me Kub Thiab Humidity Aging Chamber Rau Composites	Standing Temperature And Humidity Aging Chamber For Composites	Taug kev-Nyob rau hauv Kub Thiab Humidity Aging Chamber Rau Composites

Q1: Cov kev xaiv hom lus twg muaj rau tus tswj interface? Nws puas yuav nce nqi?
LIB controllers tuaj txheem nrog lus Askiv thiab Suav interfaces. Cov lus xaiv xws li Fabkis, German, Polish, thiab Lavxias yog muaj. Txhua yam lus ntxiv raug nqi kwv yees li $500.

Q2: Cov nkhaus puas tuaj yeem kos thaum lub sijhawm kuaj?
Yog lawm. Tiag - lub sij hawm nkhaus plotting yog tus qauv. Lub kaw lus kaw cov ntaub ntawv txhua feeb thiab khaws cia txog li 3 xyoos ntawm cov ntaub ntawv ntsuas txuas ntxiv nrog kev sau tsis siv neeg.

Q3: Dab tsi yog qhov dej nkag thiab qhov hluav taws xob valve?
Ob qhov inlet thiab qhov hluav taws xob ports siv 11.5 mm txoj kab uas hla. Ib tug 2-meter kua hose yog suav nrog rau kev yooj yim installation.

Q4: Dab tsi ntawm qhov kub thiab txias txhawb 10℃/ min hloov ceev?
Rau TR ceev- hloov chav, 10℃/ min tus nqi siv nyob rau hauv -60℃rau +85℃nyob rau hauv tsis muaj- load tej yam kev mob.

Q5: Puas yuav customization (test ports lossis observation windows) ncua kev xa khoom?
Kev hloov kho tus qauv tsis cuam tshuam rau lub sijhawm xa khoom. Cov qauv tsim tshwj xeeb yuav xav tau 5-10 hnub ntxiv, nyob ntawm qhov nyuaj.

Lub sij hawm los txhawb koj qhov ntsuas kub thiab av noo?

LIB Kev Lag Luam muab qhov tseeb -engineered ib puag ncig chav tsim los rau kev ntseeg siab, ua raws, thiab kev ua tau zoo. Los ntawm kev ntsuas tus qauv mus rau cov kev daws teeb meem zoo tag nrho, peb pab koj ua tiav qhov tseeb, rov ua tau, thiab lees paub thoob ntiaj teb.

Txhua yam customization tuaj yeem ua tau. LIB provides a3-xyoo warranty thiab kev pab cuam lub neej. Txhua yam teeb meem uas tsis tuaj yeem daws tau thaum lub sijhawm lav yuav raug hloov pauv dawb dawb. 24/7 Lus Askiv- hais tom qab- pab pawg muag khoom.Fast shipping nyob rau hauv 7-15 hnub.

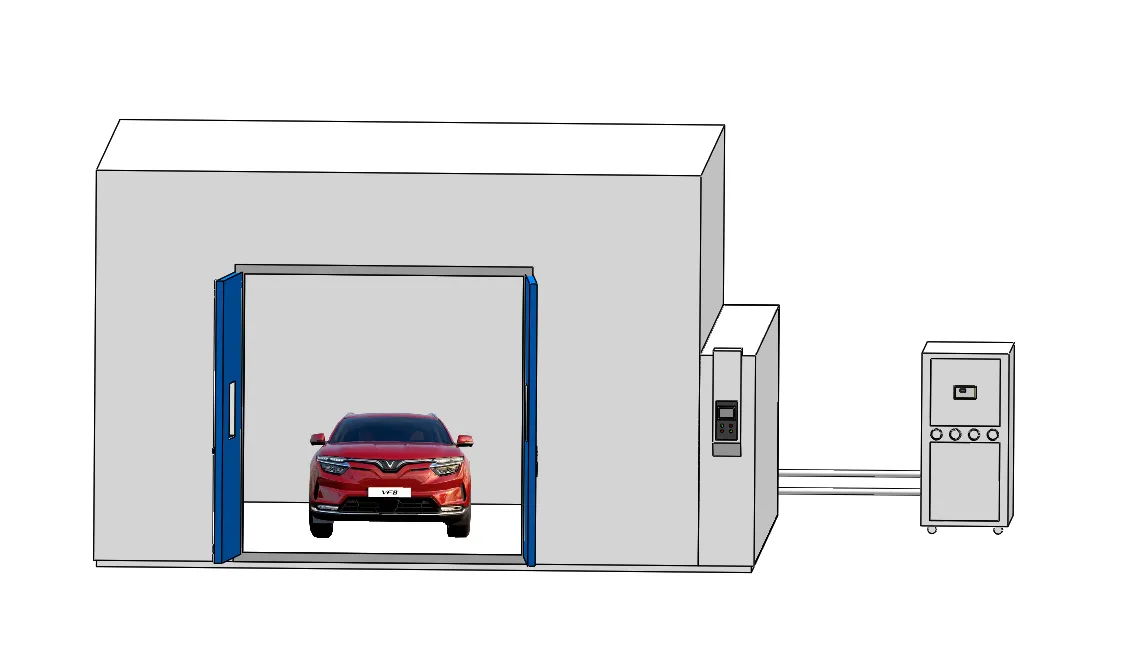

Constant Temperature Humidity Climatic Chamber
