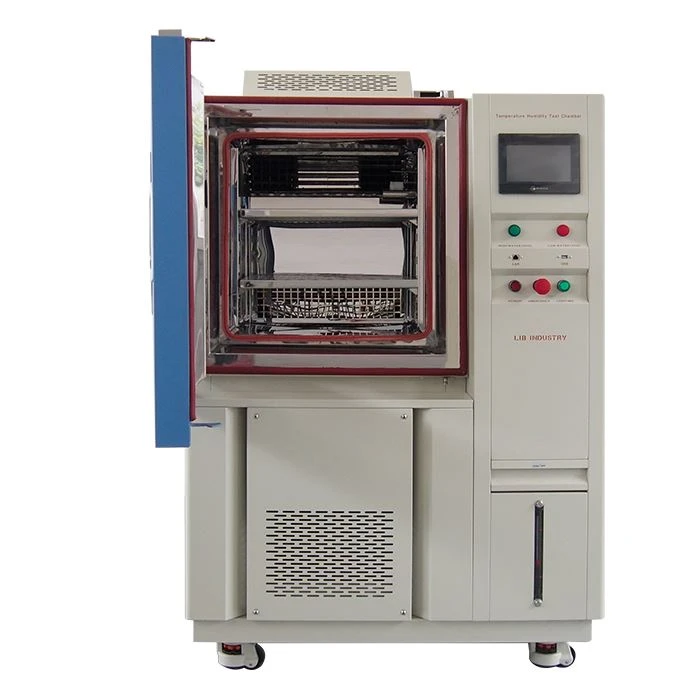

Laboratory Stability Temperature Control Humidity Climate Chamber
Lub Npe: Laboratory Stability Temperature Control Humidity Climate Chamber;
Qhov kub thiab txias: -70℃~ +150℃;
Qauv: TH-225;
Cov tub yees: R404A, R23;
Qhov kub thiab txias: ± 0.5 degree;
Cua sov tus nqi: 3℃/ min;
Kub sib txawv: ± 2.0 degree;
Txuj thiab kev cai;
Hauj lwm lawm
LIB Environmental Simulation Kev Lag Luam yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm Laboratory Stability Temperature Control Humidity Climate Chamber nyob rau hauv Suav teb, featured los ntawm cov khoom zoo thiab tsis muaj nqi. Txais tos kom yuav CE pom zoo Laboratory Stability Temperature Control Humidity Climate Chamber hauv Tshuag ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Tiv tauj peb rau cov lus qhia luv nqi.
Laboratory Stability Temperature Control Humidity Climate Chamber dav siv nyob rau hauv aerospace, hluav taws xob thiab hluav taws xob, instrumentation, cov ntaub ntawv thiab cov cuab yeej, qhov chaw thiab lwm yam kev kuaj.
Humidity Climatic Test Machine PLC rau kev ntsuas kub thiab tsis kub damp, ntsuas kub tiv thaiv, kub thiab tsis kub hloov pauv kub thiab av noo, ntsuas kub tsis tu ncua thiab av noo, ntsuas kub tsis tshua muaj. Laboratory Stability Temperature Control Humidity Climate Chamber yog nyob rau ntawm -70℃txias rau +150℃kub, thiab 20–98% RH-kev ntseeg tau pov thawj nyob rau hauv txhua txhua huab.
Technical Parameters
| Lub npe | Humidity Climate Chamber | ||||
|
Qauv |
TSI-100 |
TSI-225 |
TSI-500 |
TSI-800 |
TSI-1000 |
|
Internal dimension (hli) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Zuag qhia tag nrho (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
Muaj peev xwm |
100L |
225L |
500L |
800L |
1000L |
|
Qhov kub thiab txias |
-20℃-+150 degree |
||||
|
Hom qis |
A: -40℃B: -70℃C -86 degree |
||||
|
Humidity Range |
20% -98% RH |
||||
|
Kub deviation |
± 2.0 degree |
||||
|
Cua sov tus nqi |
3℃/ min |
||||
|
Txias tus nqi |
1℃/ min |
||||
|
Tus tswj |
Programmable xim LCD kov npo maub los, Multi-language interface, Ethernet, USB |
||||
|
Cov tub yees |
R404A, R23 |
||||
|
Cov khoom siv sab nrauv |
Hlau Phaj nrog tiv thaiv txheej |
||||
|
Khoom siv sab hauv |
SUS304 stainless hlau |
||||
|
Standard configuration |
1 Cable qhov (Φ 50) nrog ntsaws; 2 txee |
||||
|
Lub Sijhawm Ua Haujlwm |
0.1 ~ 999.9 (S, M, H) teeb tsa |
||||
Advantage Show
 |
 |
|
Kub thiab humidity sensor |
PC Link thiab USB |
Test Chamber Desgin
 |
Xeem cheeb tsam 2pcs 2.5mm SUS304 stainless hlau txee; Txhua txee loads 50KGS; Cov khoom txee qhov siab tuaj yeem kho tau; |
|
Tus tswj Programmable xim kov npo hom 120 cov kev pab cuam, RS232 rau PC txuas Ntau qhov kev xaiv muaj nuj nqi: Ntau -lus zaub, PC txuas, USB, App |
|
|
Saib Qhov rai Sab hauv teeb pom kev zoo Qhov rai coated nrog ua zaj duab xis los tiv thaiv nws los ntawm Frost. Loj: 250 * 300mm. Kom meej meej pom cov qauv hloov |
Cov yam ntxwv tseem ceeb
Laboratory Stability Temperature Control Humidity Climate Chamber
▶ Kev tswj qhov kub thiab txias
▶ Humidity tswj thiab tso saib chav tsev
▶ Programmable xim LCD kov npo maub los
▶ Ntau -lus interface
▶ USB thiab Ethernet
▶ Casters, txee, thiab cable chaw nres nkoj yog tus qauv
▶ Tsim- hauv lub tank dej
▶ Kho tau thiab tshem tau cov qauv txee
▶ CE cim, ISO17025 calibration
Txij li xyoo 2009, LIB Kev Lag Luam coj ntau tshaj kaum xyoo ntawm kev txawj ntse engineering rau txhua qhov chaw kuaj ib puag ncig. Tiv tauj peb kom tau txais kev daws teeb meem.
