Artificial Climate Chamber

Lub Npe: Artificial Climate Chamber;
Qauv: TH-100/TH-225/TH-500;
Qhov kub thiab txias: 70 degree - +150 degree;
Controller: Programmable maub los;
Ethernet kev twb kev txuas, PC Txuas
Cua sov Rate 3 degree / min

Xa kev nug

Ces

Hauj lwm lawm

LIB Environmental yog ib qho ntawm cov kws tshaj lij thiab ntseeg tau cov tuam txhab kev nyab xeeb thiab ib puag ncig kuaj hauv Suav teb. Nruab nrog lub koom haum kev tshaj lij, peb tuaj yeem muab koj cov khoom siv dag zog nrog cov nqi sib tw. Tam sim no peb muaj cov khoom zoo tshaj plaws kev nyab xeeb chamber rau kev muag khoom, txais tos yuav peb cov chav kuaj ntawm tus nqi qis thiab xyuas tus nqi nrog peb tus neeg muag khoom.

Artificial climate chamber yog ib hom kev sim thiab cov cuab yeej tshawb fawb uas tuaj yeem simulate lub ntuj ib puag ncig. Kub thiab av noo yog qhov tseem ceeb tswj tsis tau.

Qhov kub thiab txias

A : -20 degree - +150 degree

B : -40 degree - +150 degree

C: -70 degree - +150 degree

Video

Main Parameter

Lub npe	Artificial Climate Chamber
Qauv	TH -100	TH -225
Sab hauv Dimension (mm)	400500500	500600750
Zuag qhia tag nrho Dimension (mm)	90010501620	100011401870
Sab hauv ntim	100L	225L
Thaum tshav kub kub load	1000W
Qhov kub thiab txias	A: -20 degree - +150 degree B: -40 degree - +150 degree C: -70 degree - +150 degree
Kub Fluctuation	± 0.5 degree
Kub Deviation	± 2 0 degree
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Txias tus nqi	1 degree / min
Cua sov tus nqi	3 degree / min
Cov tub yees	R404A, R23,R449A,R508B
Tus tswj	Programmable xim LCD kov npo maub los
Qhov system muab dej	Tsis siv neeg dej, dej purification system
Kub Sensor	PTR Platinum Resistance PT100Ω/MV A-chav kawm, raug 0.001 degree
Humidity Sensor	Qhuav thiab ntub qhov muag teev sensor
Khoom siv sab nrauv	Hlau Phaj nrog cov txheej txheem tiv thaiv
Khoom siv sab hauv	SUS304 stainless hlau
Fais fab mov	220V 50Hz / 380V 50Hz
Qhov siab tshaj plaws	65dBA ua

Paub meej txog qhov zoo

PID tswj

LIB Temperature climate chamber the main unit PID controller is to command, operation, detect and redistribute the various components of the equipment to high speed processing.

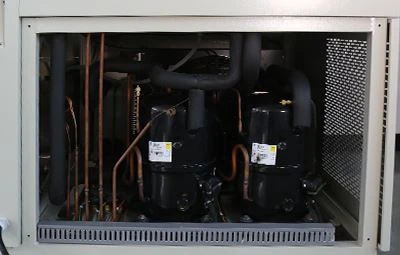

Ua kom txias txias

Lub compressor ntawm LIB huab cua kuaj chamber tuaj yeem qhib ntawm 150 degree . Peb tau tsim tshwj xeeb tsim lub tub yees bypass los tiv thaiv lub compressor puas tsuaj los ntawm cov tub yees txias heev nyob rau hauv thawj theem ntawm txias, uas zoo heev txhim khu kev ruaj ntseg ntawm lub txias.
