Thermal Test Equipment



Kev piav qhia

---

Thermal Test Equipmentyog ib qho khoom siv kuaj uas nthuav tawm cov khoom mus rau qhov kub thiab txias los ntsuas nws qhov kev ntseeg tau thiab kav ntev. Lub chamber simulates hnyav ib puag ncig xws li huab cua txias, cua sov, lossis kub kub hloov pauv kom ntseeg tau tias cov khoom tuaj yeem tiv taus cov xwm txheej no.



Nws yog feem ntau siv hauv kev tsim khoom lag luam los kuaj cov khoom ua ntej lawv mus txog kev ua lag luam, xws li cov khoom siv hluav taws xob, cov khoom siv tsheb, thiab cov khoom siv dav hlau.



Khoom Parameters

---



Qauv			TS -162	TS -340		TS -500		TS -1000
Sab hauv Dimensions (mm)			300*300*250	450*450*360		650*650*500		850*850*700
Zuag qhia tag nrho Dimension (mm)			1560*870*1545	1710*1020*1845		1910*1220*2265		2110*1420*2665
Sab hauv Volume (mm)			22L	72L		211L		505L



Load chav kuaj	50 kg
Upper limit preheat kub	+220 degree
Lub sijhawm cua sov	ambient kub rau ~ + 200 degree, nyob rau hauv 30 feeb.
Txo qhov txwv ua ntej txias txias	-75 degree
Lub sijhawm txias	ambient kub rau ~ -70 degree, nyob rau hauv 30 feeb
Kub kub raug ntau	Ambient kub +20 txog +200 degree
Tsawg kub raug ntau yam	-65 mus rau -5 degree
Lub sijhawm rov qab los	Hauv 15 feeb
Kub hloov pauv	Tsawg dua los yog sib npaug rau ±0.5 degree
Kub deviation	Tsawg dua lossis sib npaug ± 3 degree
Tus tswj	Programmable xim LCD kov npo maub los
Txias qhov system	Mechanical compression tub yees system
Cov khoom siv sab nrauv	Hlau Phaj nrog tiv thaiv txheej
Qhov rai saib	Sab hauv teeb pom kev zoo, ob txheej txheej thermo stability silicone roj hmab sealing
Fais fab mov	380V 50Hz



Cov qauv khoom

---

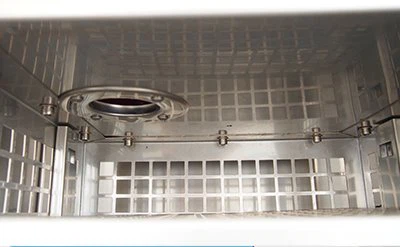

Test Hole: Ib lub qhov cable yog muab rau saum lub pob tawb kom muaj zog rau cov khoom xeem.	Test Basket: Cov qauv kuaj tau muab tso rau hauv lub pob tawb. Lub pob tawb siv pneumatic zawv zawg, txav nce thiab nqis kom zoo thiab nrawm, tsis muaj kuab paug thiab tsis muaj suab nrov.
Tus tswj	Qhov rai saib



Nta

---

1. Txais cov tub yees compressor tub yees, ntim nrog ib puag ncig tus phooj ywg refrigerant, zoo tub yees zoo, tsis muaj emission xav tau.



2. Nyob rau hauv cov ntaub ntawv ntawm qhov kub thiab txias cuam tshuam los yog kub tsis tshua muaj kev cuam tshuam, lub voj voog siab tshaj plaws tuaj yeem ncav cuag 9999 zaug



3. Tshwj xeeb kev ruaj ntseg qhov rooj xauv kom muaj kev ruaj ntseg ntawm tus neeg teb xov tooj



4. Cov tsos, qhov ntev, qhov ntsuas thiab cov haujlwm tshwj xeeb tuaj yeem kho tau



Cov txiaj ntsig ntawm kev sim ua kom cov khoom zoo thiab tiv thaiv kev ua tsis tiav ntxov, yog li ua kom cov neeg siv khoom ntseeg siab thiab txaus siab. Lub thermal shock chamber muab cov cuab yeej tseem ceeb los tsim cov khoom lag luam ruaj khov thiab kav ntev, uas yog qhov tseem ceeb rau kev lag luam thiab kev lag luam zoo.
