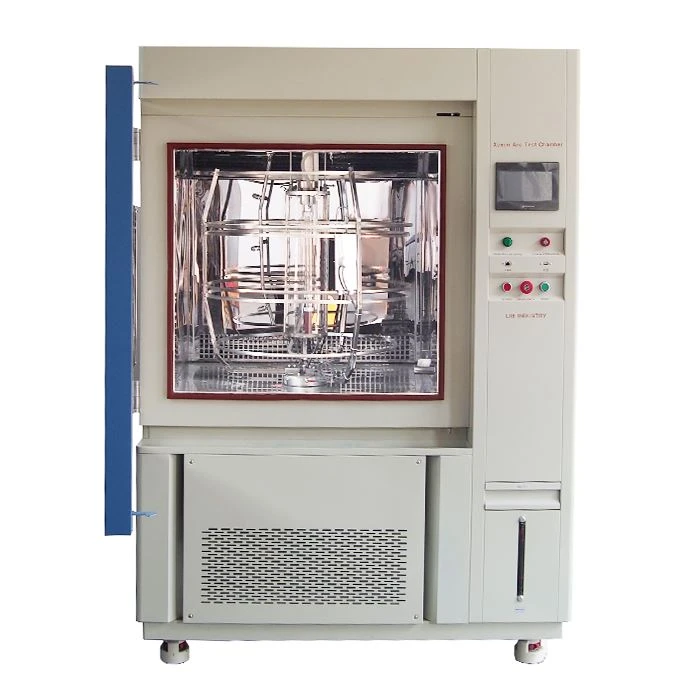

Weathering Test Instruments
Weathering Test Instruments
Daim ntawv thov: Aging Test, Textiles;
Bandwidth Ntsuas: 300 ~ 400nm;
300 ~ 400nm: -40- 100 degree ± 2 degree;
Dub Vaj Huam Sib Luag Kub: 35 - 85 degree ;
Humidity Range30% ~ 98% RH;
Hauj lwm lawm
Weathering Test Instruments siv xenon arc teeb uas tuaj yeem simulate tag nrho lub hnub ci spectrum los tsim cov teeb pom kev puas tsuaj nyob rau hauv ib puag ncig sib txawv, uas tuaj yeem muab cov kev simulation ib puag ncig thiab nrawm rau kev tshawb fawb tshawb fawb, kev tsim khoom thiab kev tswj kom zoo.
Video
Technical Parameters
| Lub npe | Weathering Test Instruments |
Qauv | XL-S -500 |
Sab hauv Dimension (mm) | 500 * 600 * 700 hli |
Zuag qhia tag nrho Dimension (mm) | 1000 * 2450 * 1990 hli |
Sample tuav | Adjustable ceev, 1r / min |
Hom Chamber | Rotating Holder |
Irradiation Source | 1 daim ntawm 4500w dej txias xenon arc teeb nrog puab quartz thiab txheej borosilicate lim |
Irradiance Range | 150W/㎡ |
Kev Ntsuas Bandwidth | 300-400nm |
Chamber Temperature Range | -40- 100 degree ± 2 degree |
Dub Vaj Huam Sib Luag Kub | BPT 35 - 85 degree ± 2 degree |
Humidity Range | 30% ~ 98% RH |
Dej Txau Lub voj voog | 1 ~ 9999H59M (Adjustable) |
Tus tswj | Programmable xim LCD kov npo maub los |
Xov tooj cua | UV Radiometer, kam rau ua: ± 5% |
Khoom siv sab nrauv | Hlau phaj nrog tiv thaiv txheej |
Khoom siv sab hauv | SUS304 stainless hlau |
Paub meej
 |  |  |
| Tus tswj | Cov khoom ntim khoom | Rain spray system |
 |  |
Daim ntawv thov teb
Xenon teeb aging test chamber, Kev kuaj kev laus yog nqa tawm los ntawm kev nthuav tawm cov khoom siv rau lub teeb thiab thermal tawg ntawm xenon arc teeb los ntsuas lub teeb thiab huab cua tsis kam ntawm qee cov ntaub ntawv nyob rau hauv qhov kev txiav txim ntawm qhov kub thiab txias.
Xenon xeem cov twj siv tsuas yog siv hauv tsheb, txheej, roj hmab, yas, pigments, adhesives, fabrics, aerospace, ships, electronics kev lag luam, ntim kev lag luam thiab lwm yam.
Qhov zoo
1. Cua txias: compressor nrog ib puag ncig tus phooj ywg refrigerant
2. Tus tswj blackboard tus pas ntsuas kub txais kev siv tshuab xaim xaim, uas ua kom zoo dua qhov kev tswj xyuas qhov tseeb.
3. Xenon test instruments, Lub pas ntsuas kub blackboard BPT quasi-thermometer yog ntsia rau ntawm cov khoom khib nyiab
4. Ntaus: Txhawm rau sau lub sijhawm ua haujlwm ntawm txhua qhov kev xeem, lub cuab yeej tau nruab nrog lub sijhawm ua haujlwm ntawm lub vaj huam sib luag, uas tuaj yeem tswj lub sijhawm ntawm lub cuab yeej, thiab lub cuab yeej yuav cia li kaw thaum kawg ntawm lub sijhawm.
5. Cov cuab yeej tiv thaiv: txhawm rau ua kom lub teeb xenon arc ua haujlwm ib txwm thiab tsis puas, lub qhov rooj xenon teeb yuav raug tua, thiab tag nrho lub tshuab nres ua haujlwm tiv thaiv.
Cim npe nrov: weathering test instruments, manufacturers, lwm tus neeg, Hoobkas, nqi, nqe, siv, specification, kev muag khoom
