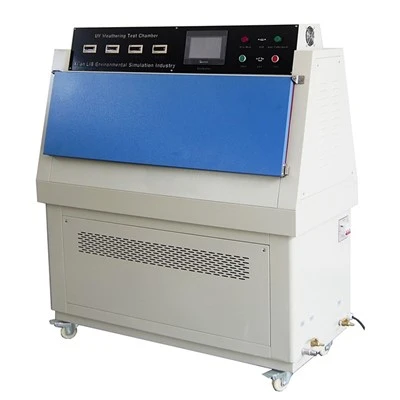

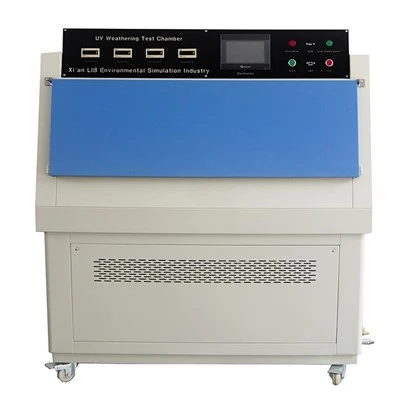

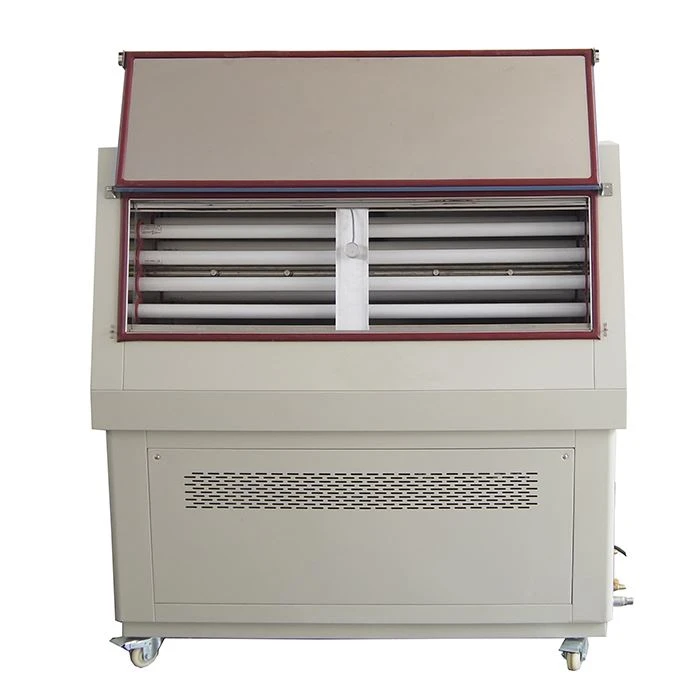

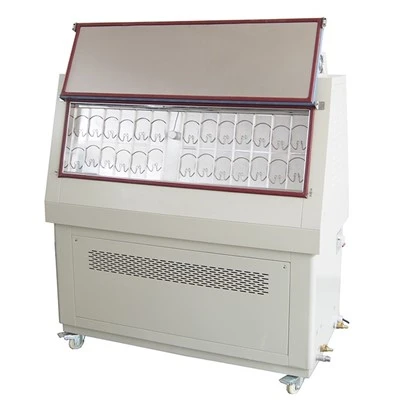

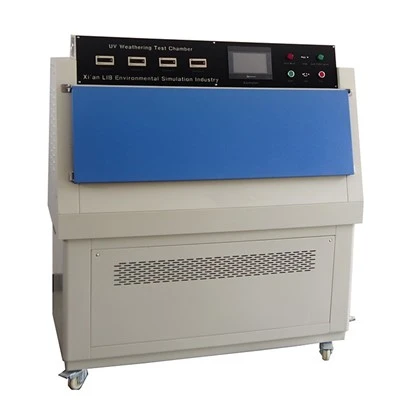

Uv Aging Test Equipment
uv aging test equipment
UV Teeb: UVA 340, UVB313;
Irradiance: 0.3 ~ 20W/㎡;
BPT: 35 degree -80 degree;
Kev xa khoom sai;
Dej Txau Cycle System;
Environmental Conditional: 5 degree -+35 degree Tsawg dua lossis sib npaug li 85%RH;
Nruab 4 castors rau tus qauv;
Hauj lwm lawm
LIBUV aging test khoomsiv 8 UVA / B teeb ua lub teeb ci nrog A-thav duab faib. Lub teeb lub neej ntev txog 5000 teev. Tus nqi irradiation ntawm cov cuab yeej no yog qhov tseeb thiab tuaj yeem tswj tau ntawm 0.3-20w/m2.
Video
Technical Specification
|
Qauv |
UV-SI-260 |
|
Sab hauv Dimension (mm) |
450*1170*500 |
|
Zuag qhia tag nrho Dimension (mm) |
680*1300*1500 |
|
Yam Khoom Loj (mm) |
75*150 |
|
Specimen Capacity |
56 qab |
|
Irradiation Source |
Fluorescent UV teeb (8) - 40 W |
|
Qhov kub thiab txias |
Ambient - 90 degree ± 2 degree |
|
Dub Vaj Huam Sib Luag Kub (BPT) |
35 - 80 degree |
|
Humidity Range |
Ntau dua lossis sib npaug li 95% RH |
|
Bandwidth |
290-400 nm |
|
Irradiance Tswj |
0.3~20 W/㎡ |
|
Dej Txau Lub voj voog |
1 ~ 9999H59M (Adjustable) |
|
Qhov deb ntawm Specimen thiab teeb |
50 mm |
Paub meej
|
|
|
| Dej Txau nozzles | UVA/B Lamps |
|
|
|
|
Cov Khoom Muag |
Dub Vaj Huam Sib Luag |
Nta
1. Cov khoom siv kuaj UV aging yog nruab nrog cov tshuaj tsuag uas simulates los nag los yog condensation generated thaum hmo ntuj thaum cov khoom kuaj tau raug rau ib puag ncig ntuj. Nws yog ua ke nrog lub teeb ci UV los tsim ntau yam huab cua rau cov khoom kuaj uas nyob ze tshaj plaws uas yuav ntsib hauv ib puag ncig tiag tiag.
2. Qauv thiab lub teeb nruab nrab nrug: 50㎜; Lub teeb nruab nrab nrug: 70㎜
3. SUS304 stainless hlau phaj, uas muaj lub teeb zoo, tshav kub, thiab noo noo tsis kam, haum rau lub teeb aging mus sij hawm ntev tsis muaj discoloration, ploj, tsis muaj variation thiab lwm yam zoo.
Cim npe nrov: uv aging test khoom, manufacturers, lwm tus neeg, Hoobkas, nqi, nqe, siv, specification, kev muag khoom
